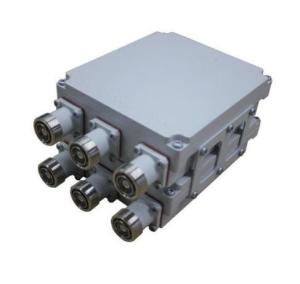

Outdoor IP67 waterproof triple band combiner freqency 885-960/1880-1920/2500-2690 with PIM 155dBc
1. Single and double units as optional
2. Easy to install
3. Outdoor IP67 waterproof
4. With Low PIM and low loss high performance combiner
| Electricals |
| Frequency range(MHz) |
885-960 1880-1920 2500-2690 |
| Insertion loss |
≤0.5 dB |
| Return loss/VSWR |
≥20dB/1.22 |
| Isolation |
≥80 dB |
| Ripple in band |
≤0.35 dB |
| Impedance |
50 Ω |
| Input power |
≤300 W(avg.) |
| Intermodulation |
≤-150dBc(3rd order; with 2×20W) |
| DC/AISG |
By-pass(max.3000 mA) |
| Lightning protection |
3KA； 10/350us pulse |
| Environmentals |
| Operating temperature |
-20°C to +60 °C |
| Storage temperature range |
-40 °C to +85 °C |
| Relative humidity |
5% - 95% |
| Application |
Indoor or outdoor (IP67) |
| Mechanicals |
| Connectors |
4pcs Din-Female(long neck)- Single unit |
New features
1. Integrates 2 ~8 Wireless Bands
2. More than 50~100 dB Input Isolation
3. High Average Power,Minimal Insertion Loss
4. Superior Intermodulation Properties Prevent
5. Brackets for Mast and Wall mounting
6. Multiple IP Degree Conditions
7. N , DIN 4.3-10Connectors, Custom Designs Available
FAQ
1. Q: How to control product quality?
A: All goods are tested, and the test report is provided. We have strict QC before shipment and we provide a 2 years warranty.
2. Q: Can you send us samples to check? Samples for free?
A: We can ship you samples and send you pictures of product details. However you need to pay for the sample fee.
3. Q: What is the MOQ?
A: 10 piece.
4. Q: What about payment terms?
A: L/C, D/A, D/P or T/T and others
If you have any other questions, please feel free to contact us.
